Tek 520A VectorClock!

Television broadcasting has switched from analog to digital - and if you’ve got a nice HD TV, you’ll be loving it!

But with that transition came the death of an entire breed of equipment – the Vectorscope.

Tektronix 1420 Vectorscope

Just to be clear, these are not monitors for playing ancient video games using vector graphics!!  No, the Vectorscope is (was) used to give a delightful view of the ‘vectors’ inside an NTSC or PAL video signal, describing the color components of the signal.

If you were lucky enough to be a TV broadcast technician, you’d use your Vectorscope all the time to check your vectors’ amplitudes and phase. You would even give your vectors names like ‘Jack’ and ‘Jill’, and check up on their relationships daily, just as any responsible guardian would!

But above all, you would marvel every single day at the beautiful hardware you were using, and the complex circuitry involved. Take a look at my Tektronix 526 Vectorscope, which has oodles of delicious tubes to heat my shop on a nice winter’s day:

Tektronix 526 Vectorscope

Well, it all went digital and there is no longer any need for analog color signal analysis. But dry your tears… There is something even better:

Announcing the Tek 520A VectorClock

This lovely Oscilloclock reincarnation of a Tektronix 520A, sold at Maker Faire Tokyo 2013, allows its new owner to forever relive the magic of NTSC, PAL and SECAM analog color.

Tektronix 520A VectorClock - brilliant blend of the old and new!

Tektronix 520A VectorClock – brilliant blend of the old and new!


See more related videos on my YouTube channel

The Tektronix 520A has a stunning built-in array of lights for illuminating the CRT graticules. By simply removing the bezel and external graticule, the Tek 520A morphs into a deliciously moody timepiece!

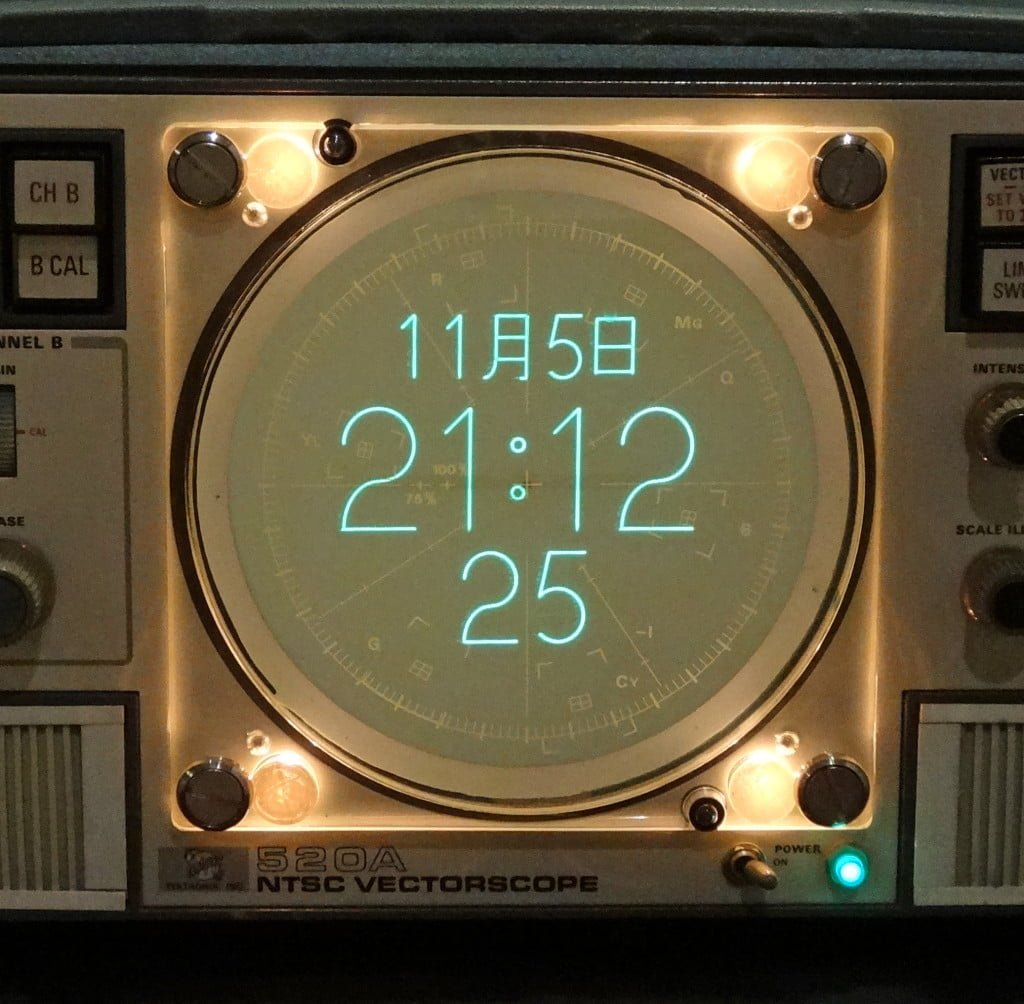

Tek 520A VectorClock - Glorious Glow

Normally, I shun CRTs with built-in graticules. Their lines detract dreadfully from an Oscilloclock image. But here! The Tek 520A’s internal vectorscope graticule is round! What better way to accentuate a Circle Graphics driven display?

Silky smooth Circle Graphics on steroids!

Silky smooth Circle Graphics on steroids!

Under the Cover…

The Tek 520A is solid-state. It can be left on 24 hours a day and not fail for many years. This makes it a perfect match for my Maximum Re-use + Minimum Invasion policy: nearly all existing circuits – HV power supply, deflection amplifiers, blanking – are put to use, with just a few (reversible) tweaks.

Tek 520A VectorClock - Maximum re-use, Minimum invasion

The Oscilloclock Power Board is mounted neatly next to its own dedicated low voltage supply. A small relay board can be seen below, for controlling the Tek’s main power unit. All cabling is HV-tolerant and neatly fastened with high-temperature cable ties.

Tek 520A VectorClock - Control Board mount and cabling

Of the more interesting reversible ‘tweaks’ needed for this retrofit, here we see a delightful little trimpot pretending to be a transistor. Quite an act, I would say!

Tek 520A VectorClock - an unorthodox transistor replacement

Like what you see?

If you love big, looming Vectorscopes and need to have one put to good use in your living room, Contact me. And be sure to subscribe from the front page, to track all the other exotic experiments and unique timepieces targeted for 2014!


Credits to [Quinn] in Canada, for providing the initial inspiration for the Tek 520A VectorClock project!
